DDK D/MS
SERIES CONNECTORS
Assembly in 48 hours!

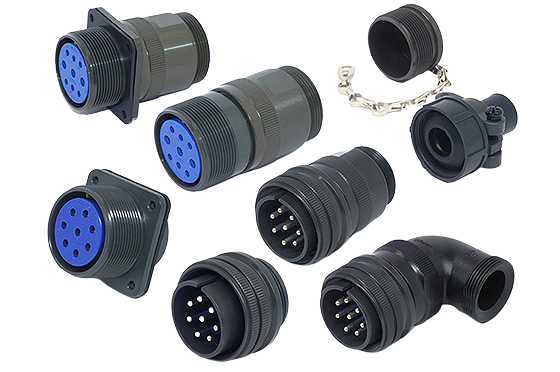

DDK D/MS series connectors
DDK D/MS series connectors are 5015 threaded connectors are compatible and intermateable with miltary standard and commerical 5015 threaded connectors.
The inserts contain barriers between each contact, to extend the creepage distance which improves the dielectric withstanding voltage.
REC’s component stock is black RoHS plating as standard, but green olive drab is available on request.
OVERVIEW
CONTACT TERMINATION: solder or crimp
MATING STYLE: threaded
MIL EQUIVALENT: MS310
SHELL STYLES
PLUGS
D/MS3106A
Style: straight plug
Accessory thread? yes
D/MS3106B
SPLIT SHELL
Style: straight plug
Accessory thread? yes
D/MS3108B
SPLIT SHELL
Style: 90 degree plug
Accessory thread? yes
RECEPTACLES
D/MS3100
Style: wall mount receptacle
Accessory thread? yes
D/MS3101
Style: in-line receptacle
Accessory thread? yes
D/MS3102
Style: box mount receptacle
Accessory thread? no
LAYOUTS
| Number of | Insert Number | Alternate Insert Key | |||
| Contact | W | X | Y | Z | |
| 1 | 20-2 | ̶ | ̶ | ̶ | ̶ |
| 10SL-4 | ̶ | ̶ | ̶ | ̶ | |
| 2 | 12S-3 | 70° | 145° | 215° | 290° |
| 14S-9 | 70° | 145° | 215° | 290° | |
| 20-23 | 35° | 110° | 250° | 325° | |
| 32-5 | 35° | 110° | 250° | 325° | |
| 10SL-3 | ̶ | ̶ | ̶ | ̶ | |
| 14S-1 | ̶ | ̶ | ̶ | ̶ | |
| 14S-7 | 90° | 180° | 270° | ̶ | |
| 3 | 16S-5 | 70° | 145° | 215° | 290° |
| 16-10 | 90° | 180° | 270° | ̶ | |
| 18-5 | 80° | 110° | 250° | 280° | |
| 18-21 | ̶ | ̶ | ̶ | ̶ | |
| 18-22 | 70° | 145° | 215° | 290° | |
| 22-2 | 70° | 145° | 215° | 290° | |
| 28-6 | 70° | 145° | 215° | 290° | |
| 36-4 | 70° | 145° | 215° | 290° | |
| 14S-2 | ̶ | 120° | 240° | ̶ | |
| 18-4 | 35° | 110° | 250° | 325° | |
| 4 | 18-10 | ̶ | 120° | 240° | ̶ |
| 20-4 | 45° | 110° | 250° | ̶ | |
| 22-10 | 35° | 120° | 250° | 325° | |
| 22-22 | ̶ | 110° | 250° | ̶ | |
| 24-22 | 45° | 110° | 250° | ̶ | |
| 32-17 | 45° | 110° | 250° | ̶ | |
| 36-5 | ̶ | 120° | 240° | ̶ | |
| 14S-5 | ̶ | 110° | ̶ | ̶ | |
| 5 | 16S-8 | ̶ | 170° | 265° | ̶ |
| 18-11 | ̶ | 170° | 265° | ̶ | |
| 18-20 | 90° | 180° | 270° | ̶ | |
| 32-1 | 80° | 110° | 250° | 280° | |
| 32-2 | 70° | 145° | 215° | 290° | |
| 14S-6 | ̶ | ̶ | ̶ | ̶ | |
| 6 | 18-12 | 80° | ̶ | ̶ | 280° |
| 20-17 | 90° | 180° | 270° | ̶ | |
| 20-22 | 80° | ̶ | ̶ | 280° | |
| 36-3 | 70° | 145° | 215° | 290° | |
| 16S-1 | 80° | ̶ | ̶ | 280° | |
| 7 | 20-15 | 80° | ̶ | ̶ | 280° |
| 22-28 | 80° | ̶ | ̶ | 280° | |
| 24-2 | 80° | ̶ | ̶ | 280° | |
| 24-10 | 80° | ̶ | ̶ | 280° | |
| 28-10 | 80° | 110° | 250° | 280° | |
| 18-8 | 70° | ̶ | ̶ | 290° | |
| 8 | 20-7 | 80° | 110° | 250° | 280° |
| 22-23 | 35° | ̶ | ̶ | ̶ | |
| 20-16 | 80° | 110° | 250° | 280° | |
| 9 | 20-18 | 35° | 110° | 250° | 325° |
| 24-11 | 35° | 110° | 250° | 325° | |
| 10 | 18-1 | 70° | 145° | 215° | 290° |
| 18-19 | ̶ | 120° | 240° | ̶ | |
| 11 | 24-20 | 80° | 110° | 250° | 280° |
| 20-27 | 35° | 110° | 250° | 325° | |
| 14 | 22-19 | 80° | 110° | 250° | 280° |
| 28-20 | 80° | 110° | 250° | 280° | |
| 32-9 | 80° | 110° | 250° | 280° | |
| 16 | 24-5 | 80° | 110° | 250° | 280° |
| 24-7 | 80° | 110° | 250° | 280° | |
| 17 | 20-29 | 80° | ̶ | ̶ | 280° |
| 19 | 22-14 | 80° | 110° | 250° | 280° |
| 20 | 28-16 | 80° | 110° | 250° | 280° |
| 22 | 28-11 | 80° | 110° | 250° | 280° |
| 24 | 24-28 | 80° | 110° | 250° | 280° |
| 26 | 28-12 | 90° | 180° | 270° | ̶ |
| 30 | 32-8 | 80° | 125° | 235° | 280° |
| 31 | 36-9 | 80° | 125° | 235° | 280° |
| 35 | 28-15 | 80° | 110° | 250° | 280° |
| 32-7 | 80° | 125° | 235° | 280° | |
| 37 | 28-21 | 80° | 110° | 250° | 280° |
| 48 | 36-10 | 80° | 125° | 235° | 280° |
| 52 | 32-414 | 80° | 110° | 250° | 280° |
| 54 | 32A-10 | ̶ | ̶ | ̶ | ̶ |
| 73 | 36-73 | 80° | 110° | 250° | 280° |
